Hydrogeological Survey: What It Is and Why It Matters Before You Drill

India loses thousands of productive boreholes to failed drilling every year. A farmer in Vidarbha spends eight lakh rupees on two consecutive dry borewells. An industrial developer in Pune submits a CGWA NOC application only to have it rejected for lack of a hydrogeological report. A solar plant developer in Rajasthan discovers — after construction has begun — that no viable groundwater exists within accessible depth.

These failures share a single root cause: water resource decisions made without a Hydrogeological Survey . When subsurface conditions are interpreted scientifically — through geophysical measurement, aquifer mapping, DEM analysis, and field data integration — borewell success rates improve dramatically, regulatory approvals proceed smoothly, and long-term water security is built on a defensible technical foundation.

What is a Hydrogeological Survey?

A hydrogeological survey is a structured, multi-disciplinary scientific investigation that characterises the movement, storage, quality, and availability of water across and beneath a defined land area. It is not a single test or a site visit — it is an integrated study that draws on surface hydrology, subsurface hydrogeology, geophysical measurement, remote sensing data, and field laboratory analysis.

In practice, a professional hydrogeological survey answers the following technical questions before any drilling or development decision is made:

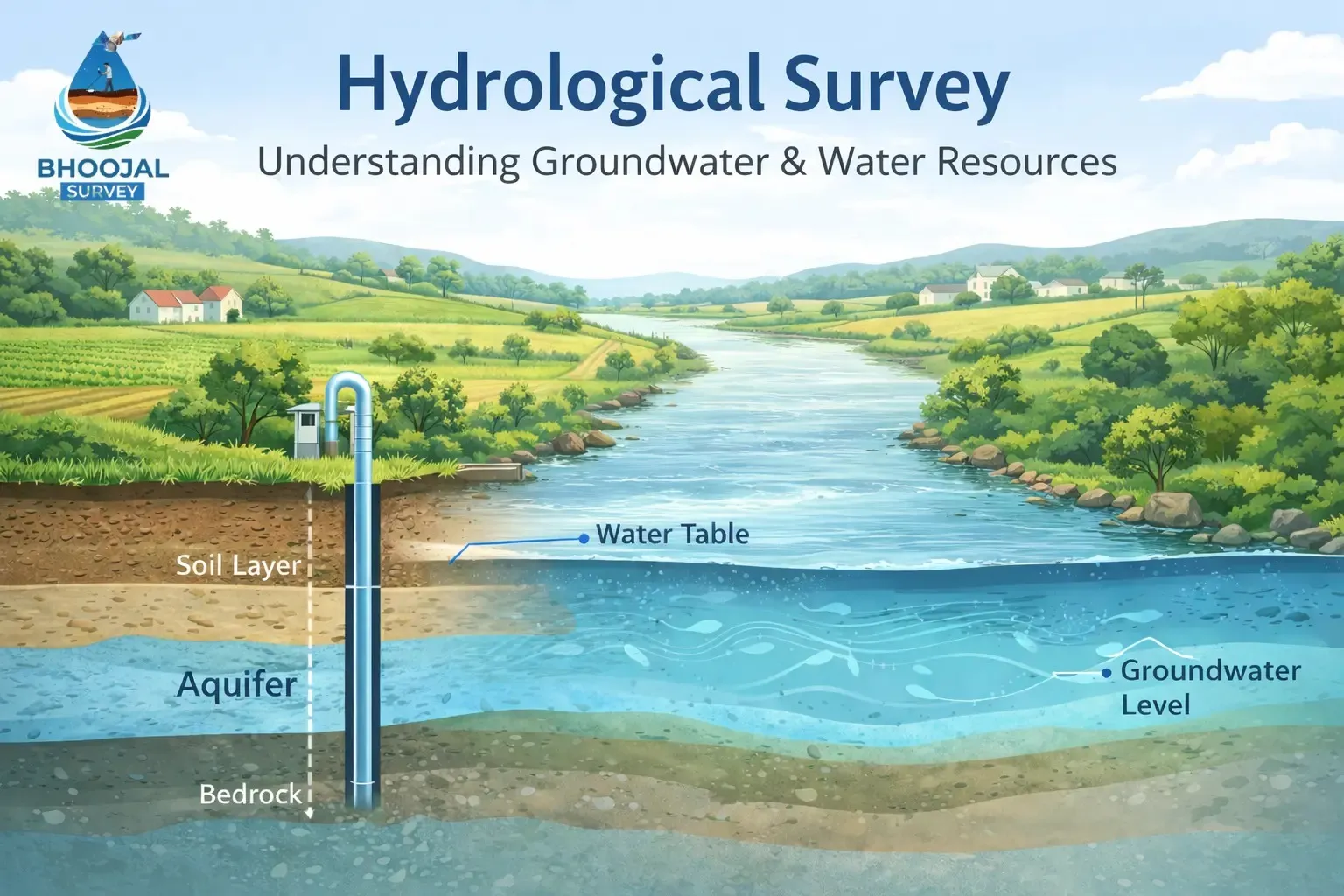

• What is the nature and depth of the local aquifer system — unconfined, confined, or fractured-rock?
• What is the current water table elevation and its seasonal variation range?
• What is the estimated sustainable yield for extraction at the proposed borewell location?
• Are there chemical or biological water quality parameters that require treatment before use?
• What recharge mechanisms sustain the aquifer, and how vulnerable is it to over-extraction?

In India's regulatory framework, a hydrogeological survey report is the mandatory technical document for CGWA NOC applications, Environmental Impact Assessments under the EIA Notification 2006, and groundwater clearances required by State Pollution Control Boards for industrial operations.

Why a Hydrogeological Survey is Important Before Drilling or Development

The financial case for commissioning a hydrogeological survey is straightforward. A dry borewell drilled in hard-rock terrain to a depth of 250 metres — including drilling, steel casing, pump testing, and installation — typically costs between Rs. 4 and Rs. 12 lakh. A professional hydrogeological survey costs a fraction of that figure. The survey eliminates the most expensive variable in any groundwater project: uncertainty.

• Regulatory compliance: A CGWA NOC application submitted without a certified hydrogeological survey report is rejected without review. Resubmission delays often cost project developers significantly more than the survey itself.
• Aquifer protection: Over-extraction from a stressed aquifer causes progressive depletion affecting surrounding agriculture and municipal supply wells. A hydrogeological survey quantifies sustainable yield before extraction begins.
• Infrastructure risk reduction: Large construction projects that alter surface drainage can unexpectedly modify local groundwater recharge. A pre-construction water resource assessment provides baseline data to evaluate and mitigate this risk.
• Water quality assurance: In high-fluoride belts of Rajasthan and Madhya Pradesh, or arsenic-affected alluvial tracts in West Bengal and Bihar, drilling without a prior survey can connect to contaminated aquifer horizons. Laboratory analysis identifies these risks before the borehole is completed.

Methods Used in a Professional Hydrogeological Survey

A rigorous hydrogeological survey integrates several investigative methods, each yielding a distinct layer of information. The strength of the final assessment lies in the convergence of multiple independent data sources — no single method is sufficient in isolation.

1. Resistivity Survey for Groundwater (Vertical Electrical Sounding)

The resistivity survey — or soil resistivity test — is the foundational geophysical method for groundwater exploration. Current is introduced into the ground via current electrodes, and the resulting potential difference is measured through potential electrodes at progressively increasing spacings using the Schlumberger or Wenner array configuration. This probes successively greater depths, generating a resistivity-depth profile at each measurement point.

Water-saturated formations exhibit characteristically low resistivity values — typically below 20 ohm-metres in alluvial sediments. Dry rock and compacted clay show high resistivity. Fractured rock zones carrying groundwater appear as anomalous low-resistivity bands at depth. Inversion and interpretation of VES data by an experienced hydrogeologist produces an aquifer column log — identifying productive zones, their depth, and estimated thickness.

2. GIS-Based Watershed Analysis and DEM Interpretation

Digital Elevation Model (DEM) data — sourced from SRTM (30m resolution) or CARTOSAT-1 (2.5m resolution) — is processed through GIS software to extract drainage networks, watershed boundaries, surface flow accumulation patterns, and topographic lineaments. This watershed analysis identifies natural groundwater recharge zones and discharge areas, and reveals fault lines and fracture systems that act as preferential pathways for groundwater movement.

LULC (Land Use Land Cover) mapping from Landsat-8 or Sentinel-2 satellite imagery complements DEM analysis by characterising infiltration potential across the watershed — distinguishing forested recharge zones from impervious urban surfaces or degraded agricultural land that contributes primarily to runoff rather than recharge.

3. IMD Rainfall Data Analysis

Long-term rainfall records from the India Meteorological Department (IMD) are incorporated to calculate mean annual recharge potential. Recharge estimation follows the CGWB methodology — typically 10 to 20 percent of mean annual rainfall in alluvial plains, and 3 to 10 percent in hard-rock terrain, corrected for soil type and land cover. This recharge estimate is critical for calculating sustainable annual extraction volumes in the hydrogeological report.

4. Geological and Soil Profile Mapping

Surface geological mapping combined with soil profile examination establishes the lithological context of the investigation. Soil texture — coarse-grained sandy soil versus fine-grained black cotton soil — directly influences infiltration rate and recharge potential. Rock type — basalt, granite, sandstone, alluvium — determines aquifer type, storage capacity, and the nature of water-bearing structures at depth.

Step-by-Step Hydrogeological Survey Process

A professionally executed groundwater survey follows a structured, reproducible protocol. The following sequence reflects the methodology applied by Bhoojal Survey across agricultural, urban, and industrial project sites:

• 1

  Desk Study and Pre-Field Data Compilation

  Before any field visit, the hydrogeological team assembles CGWB district groundwater reports, IMD 30-year mean annual rainfall data, available borewell logs from the block or tehsil, LULC maps from NRSC Bhuvan or Sentinel-2, and DEM-derived watershed parameters. This desk study defines the regional hydrogeological context and guides the field investigation design.

• 2

  Site Reconnaissance and Geological Observation

  The field team documents surface geology, drainage patterns, visible lineaments, depth of weathering, existing borewell locations and reported depths, and land use patterns. This reconnaissance data is cross-referenced with the desk study findings and informs the layout of geophysical survey traverses.

• 3

  Geophysical Survey Execution – VES and Resistivity Profiling

  Vertical Electrical Sounding (VES) stations are established at pre-determined grid points across the site, with spacing determined by the target depth and lateral resolution required. Data is collected using a calibrated Earth Resistivity Meter. In complex terrain, 2D Electrical Resistivity Tomography (ERT) may supplement VES to resolve lateral heterogeneity.

• 4

  Water Sample Collection and Laboratory Analysis

  Groundwater samples are collected from existing boreholes or hand pumps within the study area. Samples are tested at a NABL-accredited laboratory against BIS IS 10500 (drinking water) or relevant industrial standards. Parameters tested include pH, EC, TDS, hardness, alkalinity, fluoride, nitrate, iron, arsenic, lead, and microbial indicators including total coliform and E. coli.

• 5

  Data Integration, Analysis, and Aquifer Mapping

  All field and laboratory data is integrated in a GIS environment. VES interpretation produces subsurface resistivity cross-sections combined with geological logs, satellite-derived lineament maps, and rainfall-recharge estimates to produce an aquifer map identifying productive zones, their depth, and estimated hydraulic conductivity.

• 6

  Borewell Site Recommendation and Certified Report

  On the basis of integrated analysis, specific borewell locations are recommended with GPS coordinates, target drilling depth, expected casing design, and anticipated yield range. The certified hydrogeological report is formatted for direct submission to CGWA, the State Pollution Control Board, or for use in an Environmental Impact Assessment.

Technologies and Instruments Used in a Hydrogeological Survey

The quality of a hydrogeological survey is inseparable from the quality of its instrumentation. The following table summarises the principal technologies deployed by Bhoojal Survey in professional geophysical surveys for groundwater:

Instrument / Technology	Function in Survey	Data Produced
SSRMPATS Geophysical Prospecting Instrument	VLF and VHF-based fault zone identification; detects water-bearing fractures in hard-rock terrain	Fault lineament maps, fracture zone depth profiles
GER DETECT German Long-Range Detector	Long-range underground water detection; electromagnetic scanning of large plots for artesian and confined aquifer targets	Long-range resistivity anomaly maps, depth estimates
PQWT 3D Map Machine Japanese Technology	Generates 3D subsurface profiles via multi-electrode resistivity array; integrated mobile app interface for real-time field visualisation	3D resistivity cross-sections, aquifer column logs, digital PDF reports
GIS Software (ArcGIS / QGIS)	DEM processing, watershed delineation, LULC analysis, lineament extraction, aquifer map preparation	Watershed maps, recharge zone maps, aquifer distribution maps
Piezometer and Digital Data Logger	Continuous groundwater level monitoring; seasonal water table fluctuation measurement	Water table hydrographs, recharge-discharge balance data
NABL-Accredited Water Quality Lab	Chemical, physical, and biological analysis of collected groundwater samples against BIS IS 10500	Certified water quality test reports for CGWA and SPCB submission

Benefits of a Professional Hydrogeological Survey

• Improved borewell success rate: In alluvial terrain, professionally surveyed boreholes achieve success rates of 90 to 95 percent. In fractured hard-rock geology, success rates improve from a baseline of 40 to 60 percent without survey to 75 to 90 percent with survey. These figures are derived from multi-year field data across hundreds of projects.
• Defensible regulatory documentation: A certified hydrogeological report produced following IS-code methodology and CGWB district data integration is accepted without objection by CGWA, State Pollution Control Boards, and EIA consultants.
• Aquifer sustainability data: Recharge estimation and sustainable yield calculation ensure that extraction volumes declared in the NOC application reflect actual hydrogeological capacity — protecting both the client's investment and the long-term productivity of the aquifer.
• Water quality risk identification: Pre-drilling chemical screening identifies naturally occurring contaminants in the target aquifer horizon, allowing treatment systems to be designed before the borehole is completed rather than after commissioning.
• Project-level credibility: For infrastructure and industrial developers, a professionally certified hydrogeological survey demonstrates due diligence to lenders, environmental clearance authorities, and project stakeholders.

Applications of Hydrogeological Survey Across Sectors

Agricultural Borewell Drilling

For farmers in Madhya Pradesh, Maharashtra, Rajasthan, and Gujarat, a pre-drilling borewell site selection survey eliminates the most significant source of agricultural financial risk. The survey identifies the optimal drilling point, target depth, and expected yield — reducing dry-borewell incidence from above 40 percent to below 10 percent in hard-rock zones.

CGWA NOC for Industrial and Infrastructure Projects

Manufacturing plants, pharmaceutical companies, cold storage facilities, and construction projects requiring groundwater abstraction above the CGWA threshold must submit a hydrogeological survey report. Our survey reports are structured in the format prescribed by CGWA — including aquifer characterisation tables, yield test data, water quality certificates, and recharge estimates — and have a strong record of first-submission acceptance.

Construction and Real Estate Development

Large residential and commercial projects require both a groundwater source assessment for construction water and long-term supply, and a hydrological impact assessment to quantify the effect of impermeabilisation on local recharge. A hydrogeological survey provides both components in a single integrated report.

Solar Power Plants

Utility-scale solar installations in arid zones — Rajasthan, Gujarat, Andhra Pradesh — require reliable groundwater access for panel washing, construction, and staff facilities. A hydrogeological survey confirms groundwater availability at depth before land acquisition, preventing the significant development risk of discovering a hydrologically unviable site after investment has been committed.

Municipal and Village Water Supply

Block-level hydrogeological surveys for Gram Panchayat water supply schemes, Jal Jeevan Mission infrastructure, and urban fringe groundwater supply identify productive aquifer zones, optimise the spacing of extraction points to prevent interference, and provide the baseline data needed for groundwater resource management plans.

Conclusion — Commission a Hydrogeological Survey Before the First Drilling Decision

The evidence from decades of groundwater development in India is unambiguous: projects that begin with a professional hydrogeological survey consistently outperform those that do not — on borewell success rate, on regulatory approval speed, on water quality reliability, and on long-term aquifer productivity.

A hydrogeological survey is not a bureaucratic formality. It is the technical foundation on which every downstream water decision rests. The DEM analysis that identifies your recharge zone, the VES survey that maps your aquifer at depth, the water quality report that certifies your source — these are the instruments of informed, responsible, and legally compliant groundwater development.

Do not drill blind. Commission a Bhoojal Survey hydrological investigation today and let hydrogeological science do what guesswork never can.
